Multi Boring Machine

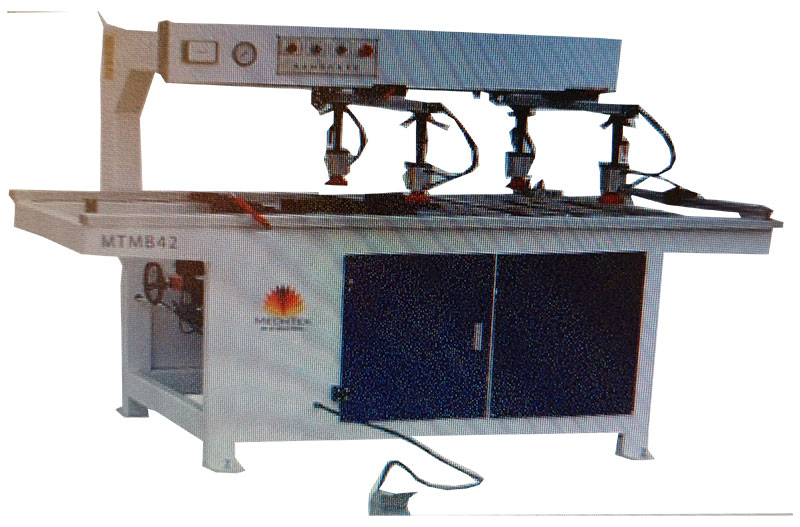

| TWO LINE MULTI-BORING M/C | |||||||
|---|---|---|---|---|---|---|---|
|
MAXM. BORING SIZE |
: 35mm |
||||||
|
MAXM. BORING DEPTH |
: 60 mm |
||||||
|
MAXM. PROCESSING DIMENSION |
: 2400 X 768 mm |
||||||
|
SPINDLE HEADS |
: ONE UNIVERSAL – 21 SPDL. ONE VERTICAL – 21 SPDL |
||||||
|
MOTOR POWDER |
: TWO Nos. 2 HP Each., 2800 rpm |
||||||
|
OVERALL SIZE |
: 2400mm X 1100mm X 1450 mm |
||||||
|
NET WEIGHT |
: 600 Kg. |
||||||

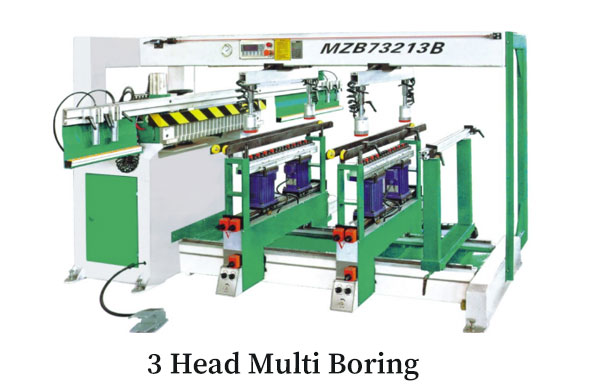

| THREE LINE MULTI-BORING M/C | |||||||
|---|---|---|---|---|---|---|---|
|
SPINDLE HEADS |
: ONE UNIVERSAL – 21 SPDL SPINDLE HEADS TWO VERTICAL – 21 SPDL |
||||||
|
MOTOR POWER |
: THREE Nos. 2 HP Each, 2800 rpm SPDL |
||||||
|
OVERALL SIZE NET WEIGHT |
: 4000 X 1200 X 1650 mm : 800 Kg. |
||||||
Other Specifications are same as the Two Line Multi-Boring M/c above. Weight
