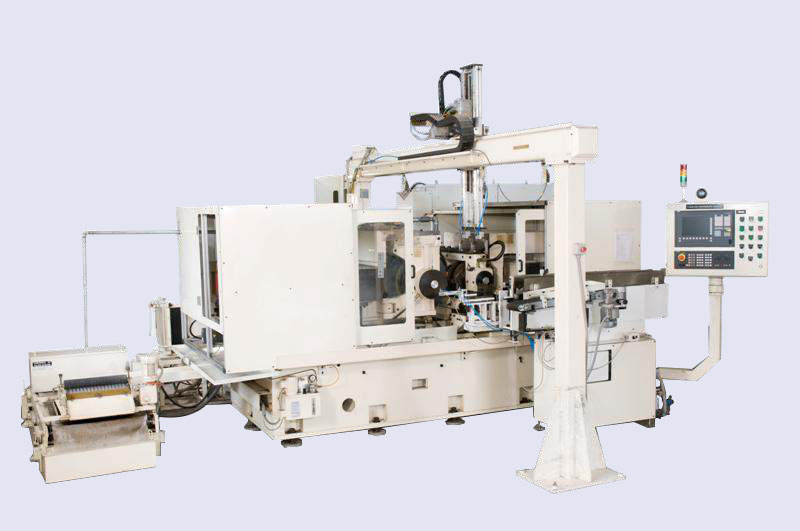

Bocca Malandrone & Sunebo Centerless Grinders
Technical collaboration with BOCCA & MALANDRONE, Sunebo S.P.A. of ITALY
Hydrodynamic Spindle Twin Supported for Regulating Wheel
Hydrodynamic Spindle Twin Supported for grinding wheel
Hydrostatic Slides for HIGH PRECISION
Fabricated Bed with Anti-Friction Concrete for HIGH RIGIDITY
Fixed Center to obtain best result in Automation
| BMS SMT R50CF | BMS SMT R90CF | BMS SMT R130CF | |
| Work Diameter Range | 1mm to 80mm | 1mm to 150mm | 1mm to 300mm |
| Grinding Wheel | 610mm x 254mm x 305mm | 610mm x 355mm x 305mm | 610mm x 500mm x 305mm |
| Regulating Wheel | 305mm x 254mm x 152.4mm | 305mm x 350mm x 152.4mm | 305mm x 500mm x 152.4mm |
| Grinding Wheel Motor Power | 25HP | 60HP | 100HP |
| Approximate Weight | 8000Kgs | 13000Kgs | 17000Kgs |
| Work Diameter Range | BMS SMT R50CF: 1mm to 80mm |
| BMS SMT R90CF: 1mm to 150mm | |
| BMS SMT R130CF: 1mm to 300mm | |
| Grinding Wheel | BMS SMT R50CF: 610mm x 254mm x 305mm |
| BMS SMT R90CF: 610mm x 355mm x 305mm | |
| BMS SMT R130CF: 610mm x 500mm x 305mm | |
| Regulating Wheel | BMS SMT R50CF: 305mm x 254mm x 152.4mm |
| BMS SMT R90CF: 305mm x 350mm x 152.4mm | |
| BMS SMT R130CF: 305mm x 500mm x 152.4mm | |
| Grinding Wheel Motor Power | BMS SMT R50CF: 25HP |
| BMS SMT R90CF: 60HP | |
| BMS SMT R130CF: 100HP | |
| Approximate Weight | BMS SMT R50CF: 8000Kgs |
| BMS SMT R90CF: 13000Kgs | |
| BMS SMT R130CF: 17000Kgs | |
