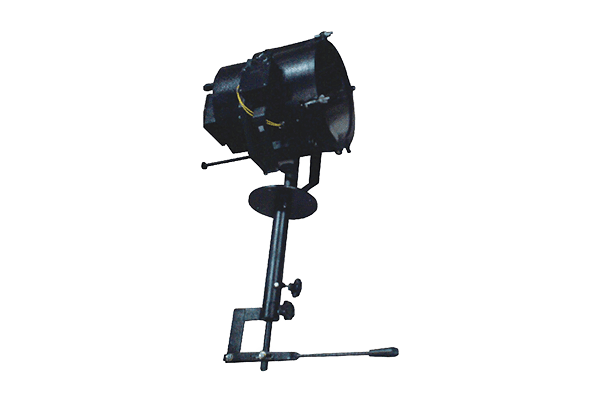

Manual Security Search Light Fitting
Manual Security Search Light Fitting
Products Details
| 2571 | Security Search Light suitable upto 1000W Halogen lamp, Brass body with hot air escape provision and MS wheel house assembly for Horizontal & Vertical movements. Powder coated finishing, mirror polshed glass reflector with front Aluminium ring and toughened glass fitting with exhaust fan |
| 2572 | —-do—- sutable up to 300W. Halogen Lamp |
| 2573 | —-do—- suitable up to 2000W. Halogen Lamp |
| 1571 | Security Search Light suitable upto 1000W Halogen lamp. Aluminium body with MS wheel house assembly for Horizontal & Vertical movements. Powder coated finishing, mirror glass reflector with front Aluminium ring and toughened glass fitting |
| 1572 | —do— suitable up to 300W, Halogen Lamp |
| 1573 | —do— suitable up to 2000W, Halogen Lamp |
| Catalogue No. | 2571/1571 | 2572/1572 | 2573/1573 |
| Sourcing Lamp | Halogen | Halogen | Halogen |
| Lamp Watt | 1000W | 150 – 300W | 2000W |
| Lamp Voltage | 240V | 24V | 240V |
| Housing Material | Brass / Aluminium | Brass / Aluminium | Brass / Aluminium |
| Reflector | Mirror Polish Glass Reflector & SS Reflector on Fornt Ring | Mirror Polish Glass Reflector & SS Reflector on Fornt Ring | Mirror Polish Glass Reflector & SS Reflector on Fornt Ring |
| Colour | Black or White | Black or White | Black or White |
| Range (Approx) | 600 to 800 mtrs | 150 to 300 mtrs | 800 to 1200 mtrs |
| Craddle | MS | MS | MS |
| Clamp | MS | MS | MS |
| Under Platform arrangement | MS | MS | MS |
| A (Approx) | 450mm or On Request | 370mm or On Request | 450mm or On Request |
| B (Approx) | 375mm | 310mm | 425mm |
| C (Approx) | 350mm | 230mm | 390mm |
| D (Approx) | 280 | 115 | 310 |
| E (Approx) | 385mm | 255mm | 410mm |
| Hinged Front Ring | Aluminium | Aluminium | Aluminium |
| Round Disc | MS | MS | MS |
| Vertical Movement | Manual | Manual | Manual |
| Weight (Approx) | 19 kg (Brass) / 15.5 kg (Aluminium) | 13.5 kg (Brass) / 11.5 kg (Aluminium) | 22 kg (Brass) / 20 kg (Aluminium) |
| Catalogue No. | Sourcing Lamp |
| 2571/1571 | Halogen |
| 2572/1572 | Halogen |
| 2573/1573 | Halogen |
| Catalogue No. | Lamp Watt |
| 2571/1571 | 1000W |
| 2572/1572 | 150 – 300W |
| 2573/1573 | 2000W |
| Catalogue No. | Lamp Voltage |
| 2571/1571 | 240V |
| 2572/1572 | 24V |
| 2573/1573 | 240V |
| Catalogue No. | Housing Material |
| 2571/1571 | Brass / Aluminium |
| 2572/1572 | Brass / Aluminium |
| 2573/1573 | Brass / Aluminium |
| Catalogue No. | Reflector |
| 2571/1571 | Mirror Polish Glass Reflector & SS Reflector on Fornt Ring |
| 2572/1572 | Mirror Polish Glass Reflector & SS Reflector on Fornt Ring |
| 2573/1573 | Mirror Polish Glass Reflector & SS Reflector on Fornt Ring |
| Catalogue No. | Colour |
| 2571/1571 | Black or White |
| 2572/1572 | Black or White |
| 2573/1573 | Black or White |
| Catalogue No. | Range (Approx) |
| 2571/1571 | 600 to 800 mtrs |
| 2572/1572 | 150 to 300 mtrs |
| 2573/1573 | 800 to 1200 mtrs |
| Catalogue No. | Craddle |
| 2571/1571 | MS |
| 2572/1572 | MS |
| 2573/1573 | MS |
| Catalogue No. | Clamp |
| 2571/1571 | MS |
| 2572/1572 | MS |
| 2573/1573 | MS |
| Catalogue No. | Under Platform arrangement |
| 2571/1571 | MS |
| 2572/1572 | MS |
| 2573/1573 | MS |
| Catalogue No. | A (Approx) |
| 2571/1571 | 450mm or On Request |
| 2572/1572 | 370mm or On Request |
| 2573/1573 | 450mm or On Request |
| Catalogue No. | B (Approx) |
| 2571/1571 | 375mm |
| 2572/1572 | 310mm |
| 2573/1573 | 425mm |
| Catalogue No. | C (Approx) |
| 2571/1571 | 350mm |
| 2572/1572 | 230mm |
| 2573/1573 | 390mm |
| Catalogue No. | D (Approx) |
| 2571/1571 | 280 |
| 2572/1572 | 115 |
| 2573/1573 | 310 |
| Catalogue No. | E (Approx) |
| 2571/1571 | 385mm |
| 2572/1572 | 255mm |
| 2573/1573 | 410mm |
| Catalogue No. | Hinged Front Ring |
| 2571/1571 | Aluminium |
| 2572/1572 | Aluminium |
| 2573/1573 | Aluminium |
| Catalogue No. | Round Disc |
| 2571/1571 | MS |
| 2572/1572 | MS |
| 2573/1573 | MS |
| Catalogue No. | Vertical Movement |
| 2571/1571 | Manual |
| 2572/1572 | Manual |
| 2573/1573 | Manual |
| Catalogue No. | Weight (Approx) |
| 2571/1571 | 19 kg (Brass) / 15.5 kg (Aluminium) |
| 2572/1572 | 13.5 kg (Brass) / 11.5 kg (Aluminium) |
| 2573/1573 | 22 kg (Brass) / 20 kg (Aluminium) |
