14.358
Spring Applied Brakes

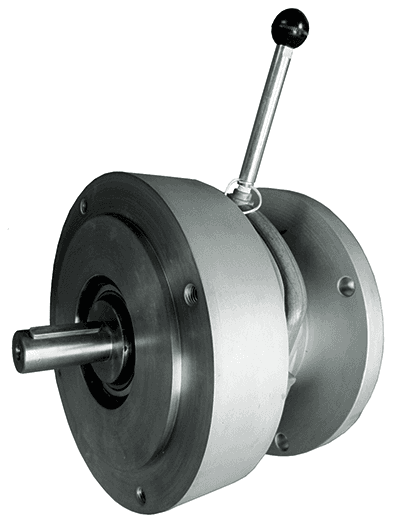

14.358 : Spring Applied Brake
Emco Simplatroll Type 14.358 DC Spring Applied Fail Safe Brake is a ‘Normally On’ braking system engineered for maximum safety and reliability. Designed to stop rotating machinery immediately when power is switched off or fails, this brake ensures equipment protection and operator safety.
Its fail-safe mechanism makes it a dependable choice for applications where safety is critical, such as elevators, cranes, hoists, and presses. The brake operates by applying compression springs force when de-energized, creating high braking torque instantly. When powered, the electromagnetic system releases the brake, allowing normal machine operation.
Durable, and easy to integrate, the 14.358 brake provides consistent performance with minimal maintenance. Its robust design allows it to perform in demanding industrial environments, making it a trusted choice across industries. Its special design allows the user to fit it on driving end of the standard motor eliminating the need to use extended shaft motors. With its fail-safe design, the 14.358 helps reduce downtime, protect equipment, and ensure operational safety in critical applications.
Torque
4 to 600 Nm
Features
- Two Friction Surfaces
- Manual Release
- All Metal Parts Protected From Rust
- Dust Protecting Seal
- Coil With Class 'F' Insulation
- Compact Robust Unit
- Residual -Free
- Simple Installation
- Fast Switching Times
- Adjustable Brake Torque
- Consistent Operating Characteristics
- High Operating Frequency & Reliability
- Low Inertia Rotors
Special Features
- Easy adaptability to B5 & B14 IEC & NEMA Frame motors
- Stationary Field (No Slip Rings)
- Convenient conduit box
- Vertical Mounting Possible
- IP 65 Protection
Applications
Brake Motors
Packaging
Machines
Robotics
Special Purpose
Machine
