Spring Applied Brake - Special Designs

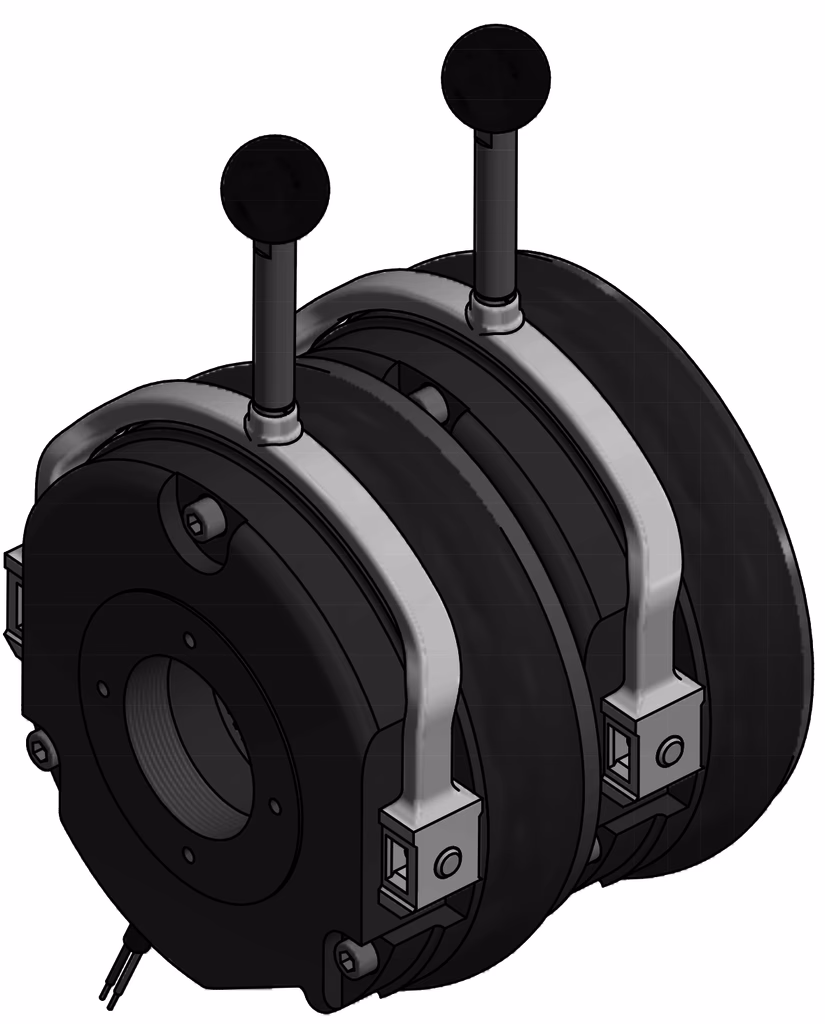

14.458 Double Brake (DB)
The Emco-Simplatroll 14.458 Double Brake (DB) is a DC spring applied fail-safe brake designed to perform both holding and emergency stopping functions. Featuring an electromagnetically actuated double brake with two separate brakes, the brake applies torque through compression springs force in the power-off state.
With torque capacity up to 5000 Nm, this brake is particularly suited for heavy-duty applications such as press brakes, lift brakes, elevator brakes, and hoist brakes. It is also available in specialized versions—including models with micro switches, tacho mounting provisions, centring flanges, and variants for low-temperature applications (-40°C).
Thanks to its modular design and adaptability, the 14.458 Double Brake is a preferred choice for industries requiring high torque, precision, redundancy and operational safety.
Torque
4 to 5000 Nm
Features
- Two Friction Surfaces
- Manual Release
- All Metal Parts Protected From Rust
- Dust Protecting Seal
- Coil With Class 'F' Insulation
- Compact Robust Unit
- Residual -Free
- Simple Installation
- Fast Switching Times
- Adjustable Brake Torque
- High Operating Frequency & Reliability
- Stationary Field (No Slip Rings)
- Simple Wear Adjustment
- Consistent Operating Characteristics
- Low Rotor Inertia
Special Features
- Redundancy
- Non Asbestos friction linings+
- German low-wear non asbestos lining available on request
- Double rated torque
Applications
Brake Motors
Cranes & Hoist
Servo motors
Packaging Machines
Golf Carts
Presses
Steel Plants
Industrial Washing Machines
Tyre Making Machinery
Robotics
Tower Cranes
Goods Lifts
Construction Machinery
Wire Drawing Machinery
Automated Guided Vehicles
Textile Machinery
