Spring Applied Brakes

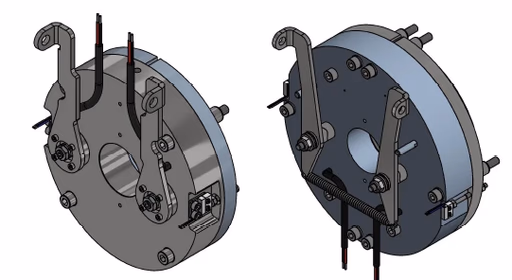

Electromagnetic Dual Circuit Brake (EDCB)
The DC Electromagnetic Double Circuit Brake Type EDCB is designed to perform holding & emergency stopping functions. These brakes find application in Elevator or Escalator drives, Special Cranes & Winches & Stage Machineries. Due to the special construction, it creates two different circuits, which can be operated independently. Two different electrical circuits make the brake useful for application needing redundancy. Compact design makes the brake light & space saver. With unique manual release design brake can be released remotely.
Torque
2 x 90 to 2 x 1400Nm
Features
- Two Friction Surfaces
- Manual Release
- All Metal Parts Protected From Rust
- Stationary Field (No Slip Rings)
- Coil With Class 'F' Insulation
- Compact Robust Unit
- Residual -Free
- Simple Installation
- Fast Switching Times
- Consistent Operating Characteristics
- High Operating Frequency & Reliability
- Both armature plates can be individually operated
- Redundant braking system
Special Features
- Redundancy through two individual brake circuits
- Double Coils
- Redundant Braking System
- Low Noise ≤ 55dB
- Non Asbestos friction linings+
Customization Available On Request
- Micro Switch Feedback ( Release & Wear)
Applications
Special Cranes &
Winches
Stage Machinery
Passenger Lifts
