Spring Applied Brakes

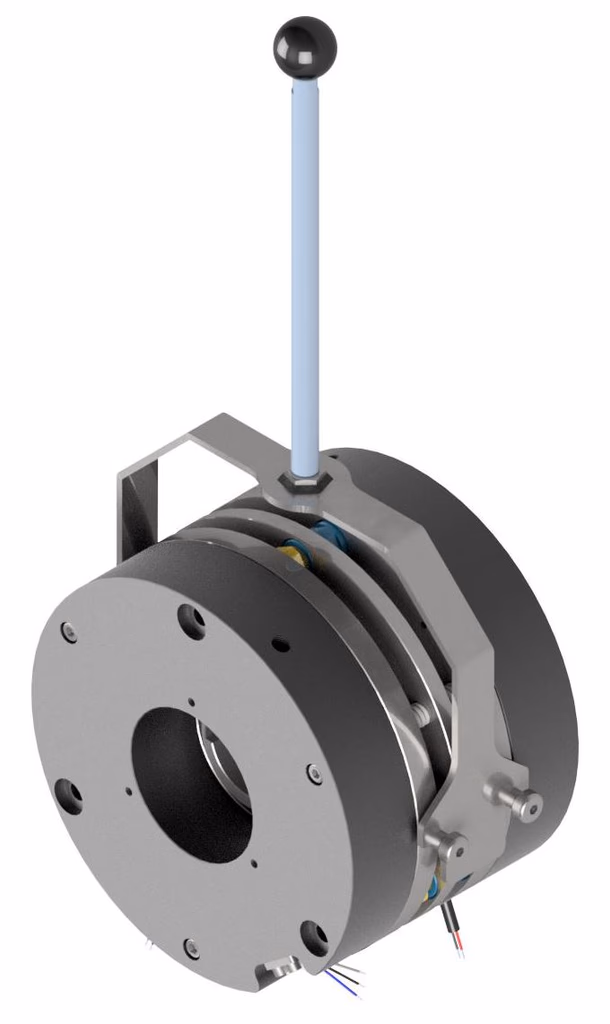

14.491 : Spring Applied Brake
DC spring applied brake Type 14.491 is Double Brake System. This brake is designed to hold the rotating devices. Brake can be used as Service brake & Holding brake also, subject to appropriate selection. Although this is double brake system, it will not deliver Double Braking Torque when applied. In nutshell this brake will always deliver torque of single brake, every time when it is applied. Therefore, this brake is used in critical applications where you need redundancy but no double braking torque.
Torque
20 to 400 Nm
Features
- Two Friction Surfaces
- Detatchable Manual Release
- All Metal Parts Protected From Rust
- Stationary Field (No Slip Rings)
- Coil With Class 'F' Insulation
- Compact Robust Unit
- Residual -Free
- Simple Installation
- Fast Switching Times
- Consistent Operating Characteristics
- High Operating Frequency & Reliability
Special Features
- Redundancy through two individual brake circuits
- Non Asbestos friction linings+
- Double brake system with torque of single brake only
- Detachable Manual Release
- Low noise operation
- Micro Switch Feedback (Release Check & Wear Check)
Applications
Cranes & Hoist
Stage Machinery
